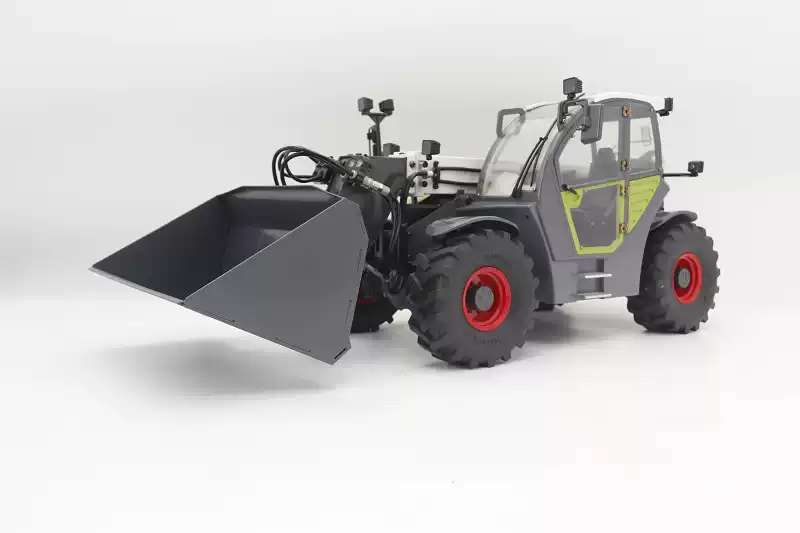

Remote controlled hydraulic telescopic arm forklift model multifunctional forklift loader

One Size and Function
Dimensions: 553 in length, 220 in width, 232 in height, in millimeters
Weight: 9.12KG, with remote control 9.6KG
Packaging size 860 * 370 * 340MM, packaging weight 13.6 KG
Lift force: A. Retract the telescopic arm by 4 kilograms
B. 1.5 kilograms after extending the telescopic arm
C. Bucket flipping force of 2 kilograms

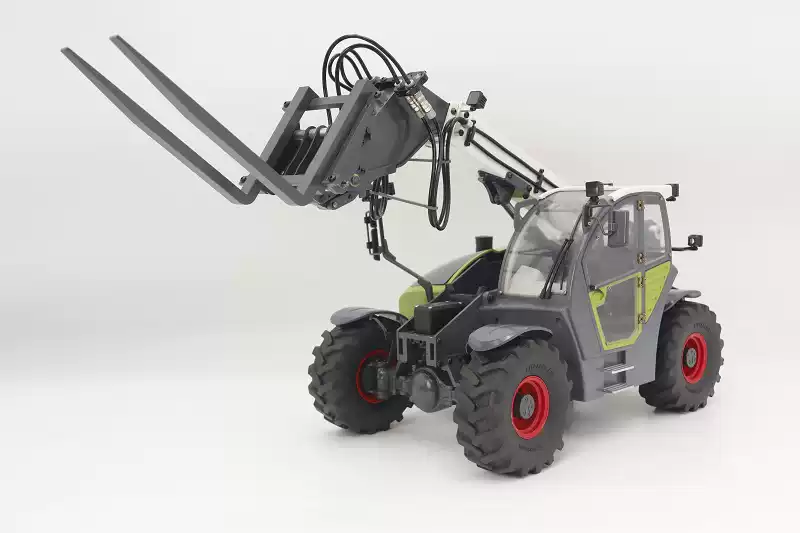

Standard accessories for the whole vehicle: bucket+fork+hydraulic grab, differential lock on both front and rear axles, steering on both axles, four-way hydraulic valve with hydraulic quick release, tool replacement is faster
II Battery Description:
1. The remote control Fusi 16S uses 4 No. 5 batteries
2. Main vehicle battery: 11.1V 3S lithium battery (battery connector XT60)
3. Battery size: length 100MM, width 35MM, height within 35MM size (batteries, chargers, and power monitors need to be purchased separately)
III Power on operation steps:
1. Confirm that the CH5/8 switch on the remote control is in the up position and the CH6/7 switch is in the center position. Only after the control lever is returned to the center position and confirmed, can the device be turned on
2. Turn on the remote control switch (press and hold both switches for 2 seconds at the same time), and the interface will display that the confirmation is complete before operation. 3. Connect the battery to the main vehicle power supply, wait for the signal sound (within about 5 seconds), and confirm before operation
be careful:
If the startup operation sequence is reversed, it will cause the ESC to enter the setting mode, resulting in the ESC not working properly.
2. Remote control battery installation: Pay attention to the positive and negative poles of the battery during installation,
3. Before installing the main vehicle battery: Measure the voltage first, and the voltage should not be lower than 11V.
