Remote-controlled hydraulic loader

   This model is of high quality and once sold, it cannot be returned or exchanged unless it is a quality issue! Before purchasing, please contact customer service first. Please pay attention to safety and strictly follow the instructions and operation videos for correct operation!
Proportion: 1:14

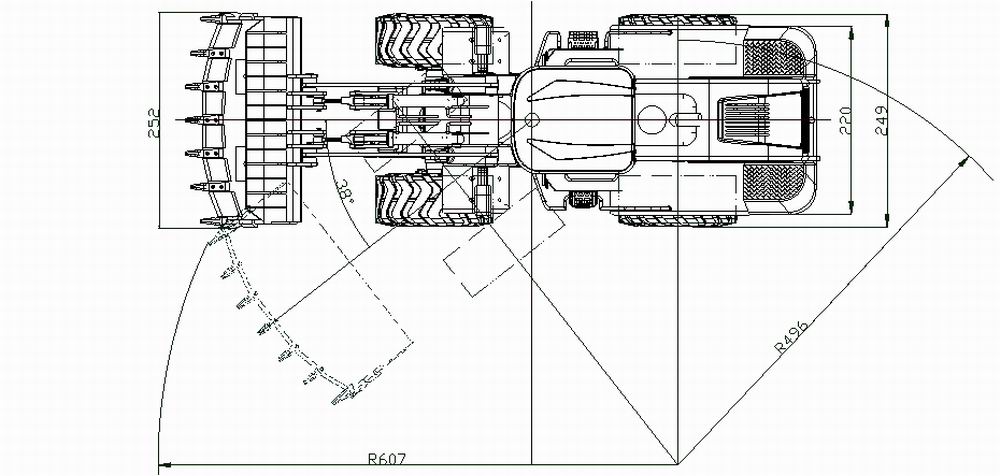

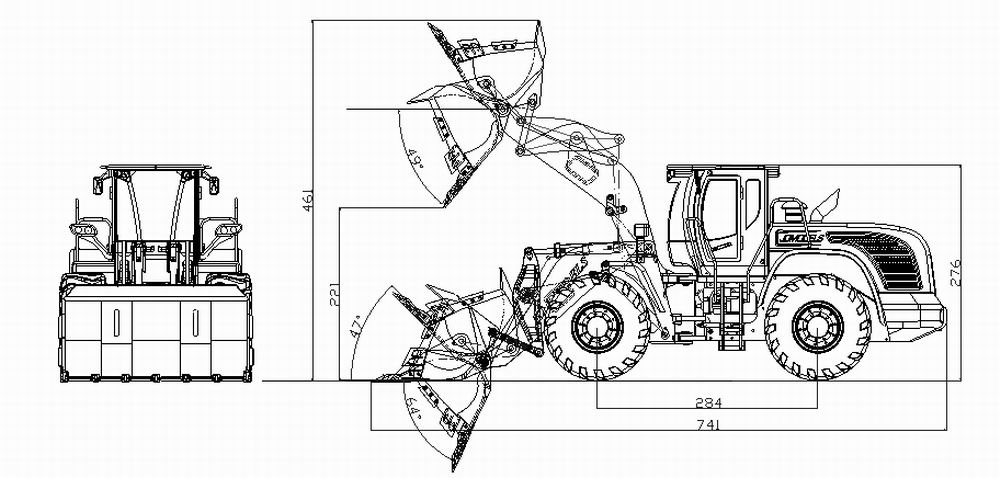

Dimensions: 741 in length (flat bucket), 249 in width (tire end face), 276 in height, in millimeters
Vehicle weight: 21KG
Packaging size 885 * 380 * 380MM, packaging weight 26KG
Theoretical rising force: 15KG (boom lift) Theoretical traction force: 30KG
Remote control: FS-i6S2.4G uses 8 No. 5 batteries or 3S lithium batteries (please confirm correct connection when connecting)
negative electrode
Power supply voltage: 12V, using 3S lithium batteries (within 140mm in length, 45mm in width, and 40mm in height)
Power on sequence: 1. Please turn on the remote control first, 2. Connect the main power supply of the model, 3. Wait for 5 seconds and then hear the confirmation sound from the electronic controller before operating
Sound system: not included as standard, needs to be purchased separately.
Hydraulic pump: flow rate 0.8L/MIN, rated pressure 2.5MPA, ultimate pressure 5Mpa.
Directional valve: Micro three-way with center return oil plug type directional valve.
Lighting system: requires separate purchase (installation service not provided)
Attention: When the boom is dropping material from the lower bucket, it cannot be lifted up, otherwise the bucket will be filled with oil
The cylinder will be damaged.
   Due to the large weight of the entire vehicle, it is necessary to avoid collisions during transportation, otherwise the axle and bucket oil will be damaged. The hydraulic oil for the new car needs to be added to 180 to 230 milliliters
