Remote Control Hydraulic Loader Model ZW370 Loader Forklift

The whole vehicle is equipped with RTR configuration, with standard remote control, ESC, servo motor, lighting, sound group, motor. Model users only need to purchase batteries themselves
Proportion: 1:14

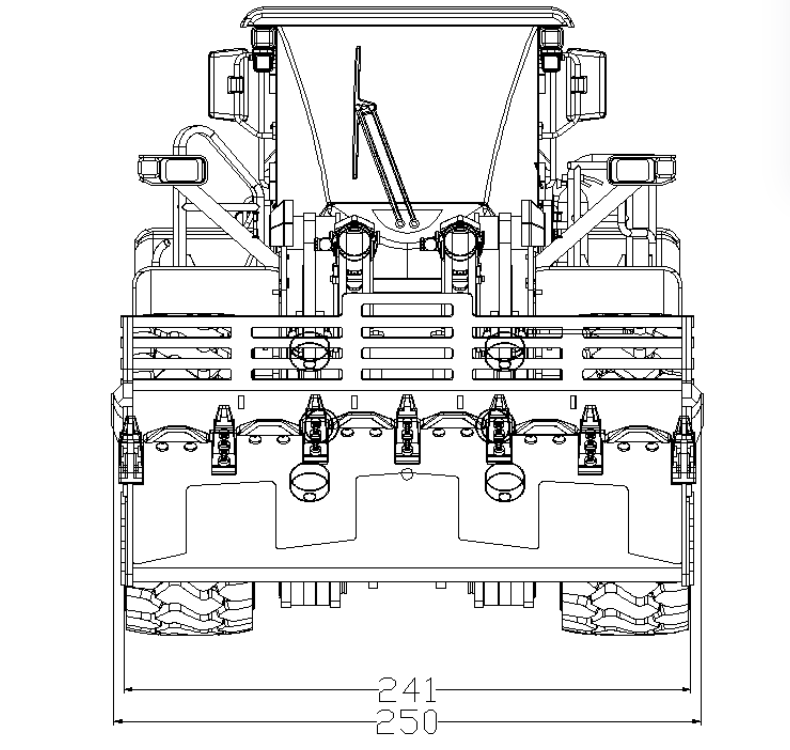

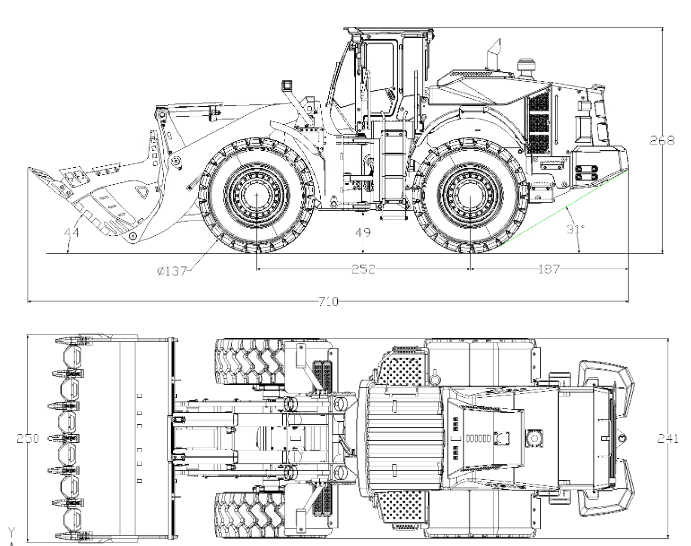

Dimensions: Length 710 (bucket flat), Width 250 (tire end face), Height 268, Unit MM
Vehicle weight: 16.5KG
Theoretical Rise Power: 15KG (boom lift) Theoretical Traction Power: 30KG Remote Control: Fusi FS-i6S Using 4 No. 5 batteries (please confirm positive and negative poles when connecting) Power Supply Voltage: 12V, using 3S lithium batteries (length 150MM, width 45MM, height 35MM)
Sound system: standard configuration
Hydraulic pump: flow rate 0.8L/MIN, rated pressure 2.5MPA, ultimate pressure 5Mpa. Directional valve: Micro three-way with center return oil plug type directional valve. Lighting system: standard, low beam, high beam, fog lights, dome light. Transmission: planetary two gears, speed ratio of 1:64 for first gear and 1:16 for second gear. Axle: speed ratio of 1:10.4, lockable differential
Attention: When the boom is at the lowest position to unload the bucket, the boom cannot be lifted up, otherwise the bucket cylinder may be damaged.
Due to the large weight of the entire vehicle, it is necessary to avoid collisions during transportation, otherwise the axle and bucket cylinder may be damaged. The hydraulic oil for the new car needs to be added to 150 to 200 milliliters
Packaged cardboard box size 885 * 380 * 380MM, packaged product weight 22KG, bucket unloading angle greater than 45 degrees at any angle; Design an automatic leveling function (after unloading, simply move the boom down and the bucket will automatically level to a shovel loading state about 5 degrees above the ground).
The maximum retraction angle of the bucket is 44 degrees; Design automatic translation function (after collecting the bucket, simply move the boom up and the bucket will automatically move to the highest point, waiting for unloading). The maximum unloading height is 250mm. The maximum unloading angle can reach 45 degrees. The maximum lifting height is 480mm.
Articulated frame hydraulic steering design with an angle of 39 degrees and a minimum turning radius of 390mm at the center of the tire
