1: 14 remote-controlled hydraulic articulated dump truck model articulated trailer

Proportion: 1:14

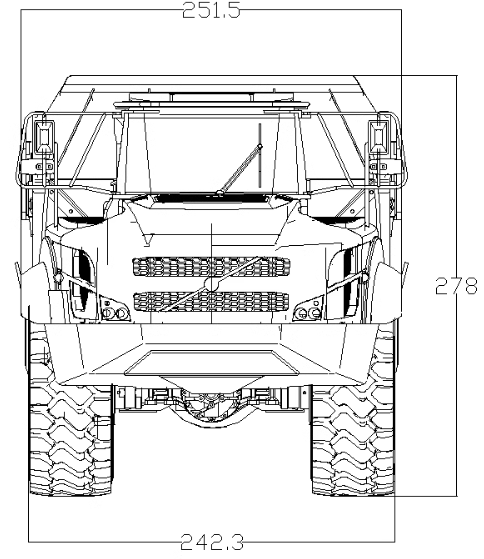

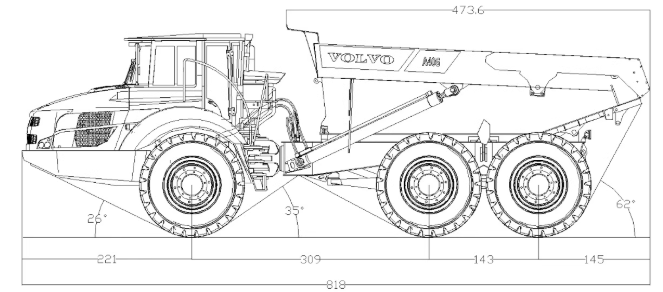

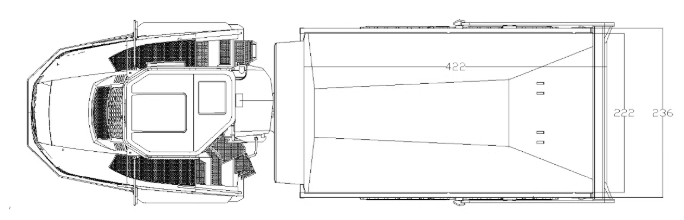

Dimensions: 818 in length, 242.5 in width (tire end face), 278 in height (roof), in millimeters
Vehicle weight: 12KG
Truck bucket lifting force: 20KG
Remote control: Fusi FS-i6S uses 4 No. 5 batteries (please confirm the positive and negative poles during installation)
Power supply voltage: 12V, using 3S lithium batteries (within a size of 135mm in length, 43mm in width, and 30MM in height, batteries and power monitors need to be purchased separately)
Startup sequence:
1. Please turn on the remote control first
2. Connect the main power supply of the model
Wait for 5 seconds and then hear the confirmation tone from the electronic control before proceeding with the operation
Sound system: not standard
Hydraulic pump: flow rate 0.8L/MIN, rated pressure 3MPA, ultimate pressure 5Mpa.
Directional valve: Micro two-way with center return oil plug type directional valve.
Lighting system: standard configuration
Engineering lights: standard configuration
