1: 14 Remote Control Hydraulic Excavator Model

Product Introduction:
1. The main body of the machine is mainly processed by CNC and stainless steel sheet metal, and some parts are processed by ABS grinding tools
2. The internal layout is compact and regular, and the hydraulic system supports up to 8 hydraulic valves, making module assembly and upgrading convenient
3. This model is a multi-purpose functional machine, with multiple upgrade methods reserved and multiple accessories matched to enhance playability
4. This model is the first to use the latest mechanical proportional hydraulic directional valve developed by KuTing, which does not require remote electronic assistance
5. The integrated hydraulic pump station reduces hydraulic oil circuits and integrates pressure regulating valves, pressure gauges, oil quantity displays, and oil discharge ports
6. The integrated cutting chassis improves the strength of the machine body, and the walking drive torque output is stable with low noise
7. The sliding design of the counterweight block is supported by two linear bearings, allowing the counterweight to be smoothly pulled out backwards and the battery to be quickly replaced
8. The oil cylinder adopts the principle of real car structure oil seal, with smooth structure, low resistance, good sealing effect, and easy maintenance
9. Highly integrated motherboard for controlling walking, oil pump motor

Product parameters:
Proportion: 1:14
Vehicle weight/KG: 7.5

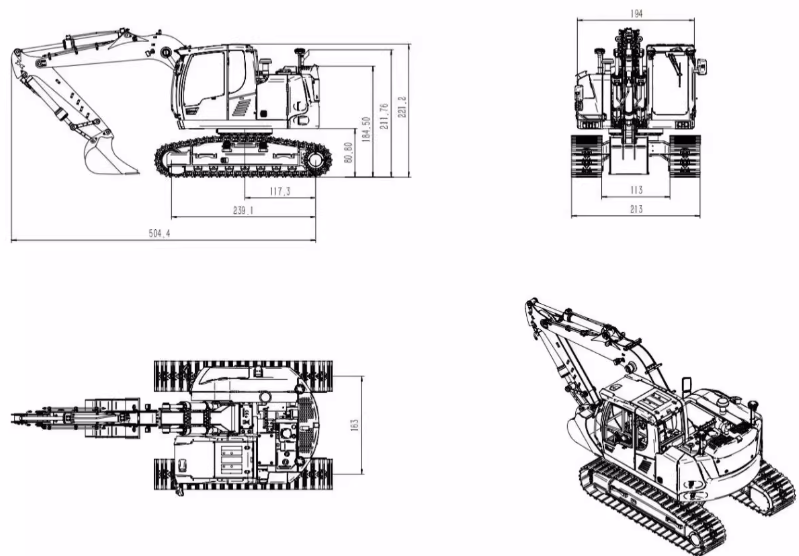

Vehicle length: 530 * 194 * 80.9
Vehicle packaging size: 810 * 410 * 290
Rotation angle: 360 degrees
Body materials: aluminum alloy, stainless steel ABS
Drive mode: brushless+planetary reduction
